ZS Compact Series Brass • Normally Closed

1/8" ~ 1/2" Normally Closed



Select your product:

Thanks for ordering!

ZS SERIES

ZS COMPACT SERIES 2/2-WAY DIRECT ACTING SOLENOID VALVE · NORMALLY  CLOSED •  1/8"~ 1/2"  • Brass

ZS Compact Series 2/2-Way Direct Acting Solenoid Valve • Normally Closed • Brass

ZS Compact Series
Valve Series: ZS
Function: 2-Way Normally Closed
Seal Material: NBR, EPDM, VITON
Body Material: Brass
Pipe Size: 1/8" ~1/2"
Orifice: 3.0 ~ 1.6mm
CV Factor: 0.23 ~ 1.65

  • 2/2-Way normally closed solenoid valve, Closed when de-energized, opened when energized

  • Body Material: Brass, SS304, SS316 (Special Made)

  • Max. Allowable pressure 16kgf/cm²; Fluid Temp: 0°C ~ 120°C

  • Serialized products, small in size, large flow rate, widely use

  • Flow as the arrow, mounts in any position; Best position is solenoid vertical and upright direction

  • Voltage: 220VAC/230VAC/240VAC/110VAC/24C/ 50/60HZ/ 24VDC/12VDC

  • Coil can fix Germany Nass Coil, for orifice under DN25 only.

  • This series valves are offered NBR, VITON, EPDM etc. for Seals and diaphragm to provide on-off control of various fluids.

  • Coil can fix SM Coil. AC 220V/AC 110V/AC 24V/DC24V

3_8_ - 1_2_ Compact Series • DIN
SLP Compact Series 2-2-Way Direct Acting Solenoid Valve • Normally Closed • SS316

ZS Compact Series SS304 • Normally Closed

1/8" ~ 1/2" Normally Closed



Select your product:

Thanks for ordering!

ZS SERIES

ZS COMPACT SERIES 2/2-WAY DIRECT ACTING SOLENOID VALVE · NORMALLY  CLOSED •  1/8"~ 1/2"  • SS304

ZS Compact Series
Valve Series: ZS
Function: 2-Way Normally Closed
Seal Material: NBR, EPDM, VITON
Body Material: SS316
Pipe Size: 1/8" ~1/2"
Orifice: 3.0 ~ 6.0mm
CV Factor: 0.23 ~ 1.65

ZS Compact Series 2/2-Way Direct Acting Solenoid Valve • Normally Closed

External Dimensions Chart

External Dimension Chart

ZS Direct Acting Brass • Normally Closed

1/4" ~ 1" Normally Closed



Select your product:

Thanks for ordering!

ZS SERIES

ZS 2/2-WAY DIRECT ACTING SOLENOID VALVE · NORMALLY  CLOSED • 1/4" ~ 1" • Brass

ZS Series 2/2-Way Direct Acting Solenoid Valve • Normally Closed • Brass

ZS Direct Acting Series
Valve Series: ZS
Function: 2-Way Normally Closed
Seal Material: NBR, EPDM, VITON
Body Material: Brass
Pipe Size: 1/4" ~ 1"
Orifice: 10 ~ 20mm
CV Factor: 1.9 ~ 5.6

  • 2/2-Way normally closed solenoid valve, Closed when de-energized, opened when energized

  • Max. pressure tolerance: 25 kgf/cm²

  • Ambient Temp: 0~65°C

  • Flow as the arrow, mounts in any position; Best position is solenoid vertical and upright direction

  • 1/4" ~ 1" Connection size, orifice Φ 10mm ~ Φ 20mm, can be widely used in corresponding flow and pressure system, replace the same connection size but big orifice valve, can save a lot of cost

  • Voltage: 220VAC/230VAC/240VAC/110VAC/24C/ 50/60HZ/ 24VDC/12VDC

  • Seals: Can choose NBR, EPDM, VITON to fit to control of different media

  • Coil can fix SM Coil. AC 220V/AC 110V/AC 24V/DC24V

ZS 2_2-Way Direct Acting Solenoid Valve • Normally Closed • Brass
ZS 2_2Way Direct Acting Solenoid Valve • Normally Closed • SS304

ZS Direct Acting SS304• Normally Closed

1/4" ~ 1" Normally Closed



Select your product:

Thanks for ordering!

ZS SERIES

ZS 2/2-WAY DIRECT ACTING SOLENOID VALVE · NORMALLY  CLOSED • 1/4" ~ 1" • SS304

ZS Direct Acting Series
Valve Series: ZS
Function: 2-Way Normally Closed
Seal Material: NBR, EPDM, VITON
Body Material: SS304
Pipe Size: 1/4" ~ 1"
Orifice: 10 ~ 20mm
CV Factor: 1.9 ~ 5.6

ZS Series 2/2-Way Direct Acting Solenoid Valve • Normally Closed • SS304

External Dimensions Chart

External Dimensions

ZS Large Diameter Brass • Normally Closed

3/8" ~ 2" Normally Closed



Select your product:

Thanks for ordering!

ZS SERIES

ZS 2/2-WAY LARGE DIAMTER DIRECT ACTING SOLENOID VALVE • NORMALLY  OPEN • 3/8" ~ 2" • Brass

ZS Series Large Diameter 2/2-Way Direct Acting • Normally Closed • Brass

ZS Large Diameter
Valve Series: ZS
Function: 2-Way Normally Closed
Seal Material: NBR, EPDM, VITON
Body Material: Brass
Pipe Size: 3/8" ~ 2"
Orifice: 16 ~ 50mm
CV Factor: 4.8 ~ 48

  • 2-Way Normally Closed solenoid valve, Closed when de-energized, Open when Energized.

  • Serialized Products, small in size, large flow rate, widely used.

  • Body material: forged brass, cast brass (for orifice Φ32, Φ40, Φ50 only), SS304.

  • Ambient Temp. 0°C~65°C, Fluids Temp. 0°C~120°C.

  • Flow as the arrow, mounts in any position; Best position is solenoid vertical and upright direction.

  • Voltage: 220VAC/230VAC/240VAC/110VAC/24VAC 50/60Hz 24VDC/12VI

        Voltage Tolerance + 10% to -10% applicable voltage can fix Nass coil.

  • Coil can fix Germany Nass Coil, for orifice under Φ 16~25mm only.

  • The series valves are offered NBR, VITON, EPDM, etc. for seals and diaphragm to provide on-off control of various fluids.

  • Coil can fix SM Coil below DN25. AC 220V/AC110V/AC24V/DC24V

ZS 2_2Way Large Diameter Direct Acting Solenoid Valve • Brass • 1_~2_
ZS 2_2Way Large Diameter Direct Acting Solenoid Valve • Normally Closed • SS304 • 3_8_~3_4

ZS Large Diameter SS304 • Normally Closed

3/8" ~ 2" Normally Closed



Select your product:

Thanks for ordering!

ZS SERIES

ZS 2/2-WAY LARGE DIAMETER DIRECT ACTING SOLENOID VALVE · NORMALLY  CLOSED • 3/8" - 2" • SS304

ZS Large Diameter
Valve Series: ZS
Function: 2-Way Normally Closed
Seal Material: NBR, EPDM, VITON
Body Material: SS304
Pipe Size: 3/8" ~ 2"
Orifice: 16 ~ 50mm
CV Factor: 4.8 ~ 48

ZS Series Large Diameter 2/2-Way Direct Acting • Normally Closed • SS304

Flow Chart

External Dimension Chart

External Dimensions Chart

Flow Chart

ZS Large Diameter SS304 • Normally Closed

Flange • Normally Closed



Select your product:

Thanks for ordering!

ZS SERIES

ZS 2/2-WAY LARGE DIAMETER DIRECT ACTING SOLENOID VALVE · NORMALLY  CLOSED • FLANGE• SS304

ZS Series Large Diameter 2/2-Way Direct Acting • Normally Closed • SS304•Flange

ZS Direct Acting Flange
Valve Series: ZS
Function: 2-Way Normally Closed
Seal Material: NBR, EPDM, VITON
Body Material: SS304
Pipe Size: Flange
Orifice: 15 ~ 100mm
CV Factor: 4.8 ~ 160

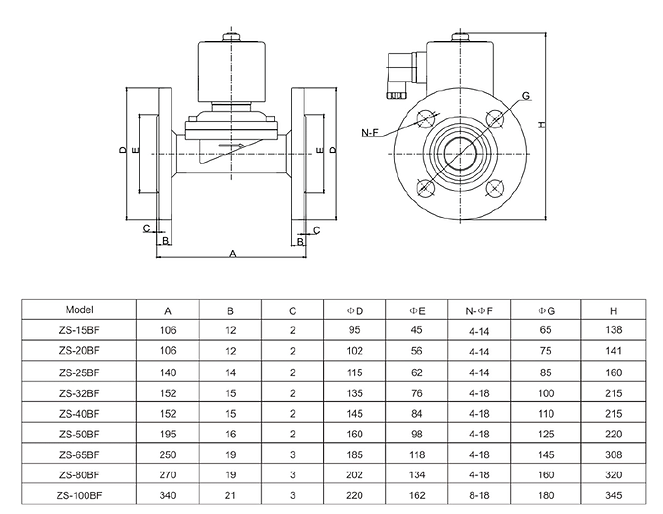

External Dimensions Flange Type

External Dimensions Chart

ZS SERIES

ZS PLASTIC SERIES 2/2-WAY ZERO PRESS DIFFERENTIAL SOLENOID VALVE · NORMALLY  CLOSED •  1/2" ~ 1 1/2" • NYLON

  • 2-Way Normally Closed solenoid valve, Closed when de-energized, Open when Energized.

  • Body material: Nylon

  • Max Pressure: 10bar Ambient Temp. 0~65°C.

  • Serialized products, small in size, large flow rate

  • Voltage: 220VAC/230VAC/240VAC/110VAC/24VAC 50/60Hz 24VDC/12VI

        Voltage Tolerance + 10% to -10% applicable voltage.

  • Diaphragm seal: NBR, VITON, EPDM, SILICA GEL

  • Plastic body: Its advantages are low cost, light, good appearance and easy to install.

  • The size below DN25, coil can fix SM Coil. AC 220V/AC110V/AC24V/DC24V

ZS Plastic Series 2-2 Way Zero Press Differential Solenoid Valve • Normally Closed

ZS Plastic Series Nylon • Normally Open

1/2" ~ 1 1/2" Normally Closed



Select your product:

Thanks for ordering!

ZS Plastic Series 2/2-Way Zero Press Differential • Normally Closed

ZS Plastic Series
Valve Series: ZS
Function: 2-Way Normally Closed
Seal Material: NBR, EPDM, VITON, SILICA GEL
Body Material: Nylon
Pipe Size: 1/2" ~ 1 1/2"
Orifice: 15~40mm
CV Factor: 4.8~ 29

External Dimensions Chart

External Dimensions

ZS SERIES

ZS 2/2-WAY DIRECT ACTING SOLENOID VALVE · NORMALLY  OPEN -  1/4" ~ 1" • Brass

  • 2-Way Normally Open solenoid valve, Open when de-energized, Closed when Energized.

  • Body Material: Brass, SS304

  • Working pressure: 0~13kgf/cm²

  • Serialized Products, small in size, large flow rate, widely used.

  • Flow as the arrow, mounts in any position; Best position is solenoid vertical and upright direction.

  • Voltage: 220VAC/230VAC/240VAC/110VAC/24VAC 50/60Hz 24VDC/12VI

  • Voltage Tolerance + 10% to -10% applicable voltage.

  • The series valves are offered NBR, VITON, EPDM, etc. for seals and diaphragm to provide on-off control of various fluids.

ZS 2_2-Way Direct Acting Solenoid Valve • Normally Open
ZS 2_2-Way Direct Acting Solenoid Valve • Normally Open • SS304

ZS Direct Acting Brass • Normally Open

1/4" ~ 1" Normally Open



Select your product:

Thanks for ordering!

ZS Series 2/2-Way Direct Acting Solenoid Valve • Normally Opened • Brass

ZS Direct Acting Series
Valve Series: ZS
Function: 2-Way Normally Open
Seal Material: NBR, EPDM, VITON
Body Material: Brass
Pipe Size: 1/4" ~ 1"
Orifice: 10~20mm
CV Factor: 1.9~5.6

ZS Direct Acting SS304 • Normally Open

1/4" - 1" Normally Open



Select your product:

Thanks for ordering!

ZS SERIES

ZS 2/2-WAY DIRECT ACTING SOLENOID VALVE · NORMALLY  OPEN -  1/4" ~ 1" • SS304

ZS Direct Acting
Valve Series: ZS
Function: 2-Way Normally Open
Seal Material: NBR, EPDM, VITON
Body Material: SS304
Pipe Size: 1/4"~1"
Orifice: 10~20mm
CV Factor: 1.9~5.6

ZS Series 2/2-Way Direct Acting Solenoid Valve • Normally Opened • SS304
External Dimensions

External Dimensions Chart

External Chart

ZS Direct Acting Brass • Normally Open

3/8" - 2" Normally Open



Select your product:

Thanks for ordering!

ZS SERIES

ZS 2/2-WAY DIRECT ACTING SOLENOID VALVE • NORMALLY  OPEN • 3/8" - 2" • Brass

ZS Series 2/2-Way Direct Acting Solenoid Valve • Normally Opened • Brass

ZS Direct Acting Series
Valve Series: ZS
Function: 2-Way Normally Open
Seal Material: NBR, EPDM, VITON
Body Material: Brass
Pipe Size: 3/8" - 2"
Orifice: 4.0~50mm
CV Factor: 0.6~48

  • 2-Way Normally Open solenoid valve, Open when de-energized, Closed when Energized.

  • Body Material: Brass, SS304 (Standard). SS316 (Special Made)

  • Max. Allowable pressure 10kgf/cm­­²; Ambient Temp. 0°C~65°C

  • Serialized products, small in size, large flow rate, widely use

  • Flow as the arrow, mounts in any position; Best position is solenoid vertical and upright direction.

  • Voltage: 220VAC/230VAC/240VAC/110VAC/24VAC 50/60Hz 24VDC/12VI

  • Voltage Tolerance + 10% to -10% applicable voltage.

  • The series valves are offered NBR, VITON, EPDM, etc. for seals and diaphragm to provide on-off control of various fluids.

ZS 2_2-Way Direct Acting Solenoid Valve • Normally Open • 3_8_~1_ • Brass
ZS 2_2-Way Direct Acting Solenoid Valve • Normally Open • 1 1_4_~2_ • SS304

ZS Direct Acting SS304 • Normally Open

3/8"~ 2" Normally Open



Select your product:

Thanks for ordering!

ZS SERIES

ZS 2/2-WAY DIRECT ACTING SOLENOID VALVE · NORMALLY  OPEN • 3/8"~2" • SS304

ZS Direct Acting Series
Valve Series: ZS
Function: 2-Way Normally Open
Seal Material: NBR, EPDM, VITON
Body Material: SS304
Pipe Size: 3/8"~2"
Orifice: 4.0~50mm
CV Factor: 0.6~48

ZS Series 2/2-Way Direct Acting Solenoid Valve • Normally Opened • SS304

Normally Open

De-Energized

Open

Energized Open

Energized

Closed

ZS Direct Acting SS304 • Normally Open

Flange Normally Open



Select your product:

Thanks for ordering!

External Dimensions

External Dimensions Chart

ZS SERIES

ZS 2/2-WAY DIRECT ACTING SOLENOID VALVE · NORMALLY  OPEN • FLANGE • SS304

ZS Direct Acting Series
Valve Series: ZS
Function: 2-Way Normally Open
Seal Material: NBR, EPDM, VITON
Body Material: SS304
Pipe Size: Flange
Orifice: 15~50mm
CV Factor: 4.8~48

ZS Series Large Diameter 2/2-Way Direct Acting • Normally Open • SS304•Flange

External Dimensions Chart

External Dimensions

ZS Plastic Series Nylon • Normally Open

1/2" -  1" Normally Open



Select your product:

Thanks for ordering!

ZS SERIES

ZS PLASTIC SERIES 2/2-WAY ZERO PRESS DIFFERENTIAL SOLENOID VALVE · NORMALLY  OPEN -  1/2" - 1" • Nylon

  • 2-Way Normally Open solenoid valve, Open when de-energized, Closed when Energized.

  • Body material: Nylon

  • Max. pressure 10bar; Ambient Temp. 0°C ~ 65°C

  • Serialized Products, small in size, large flow rate

  • Voltage: 220VAC/230VAC/240VAC/110VAC/24VAC 50/60Hz 24VDC/12VDC

  • Voltage Tolerance - 10% ~ +10%

  • Diaphragm seals: NBR, VITON, EPDM, SILICA GEL

  • Plastic body: Its advantages are low cost, light, good appearance and easy to install

ZS Plastic Series 2/2-Way Zero Press Differential SOlenoid Valve • Normally Open
ZS Plastic Series 2/2-Way Zero Press Differential • Normally Open

ZS Plastic Series
Valve Series: ZS
Function: 2-Way Normally Open
Seal Material: NBR, EPDM, VITON, SILICA GEL
Body Material: Nylon
Pipe Size: 1/2" ~ 1"
Orifice: 15 ~ 25mm
CV Factor: 4.8 - 12

External Dimensions Chart

Extrenal Dimensions Chart

Se Habla Español

Endereço

8130 Bayberry Road. #100
Jacksonville, Flórida 32256

•

Tel.

Fax

904-737-6637

 904-425-8024

5258 Keystone Dr.
Fort Wayne, IN 46825

•

2832 Geesling Rd.
Denton, TX 76208

Siga-nos no

  • facebook

©2021 por Pedro Rodríguez.

bottom of page
